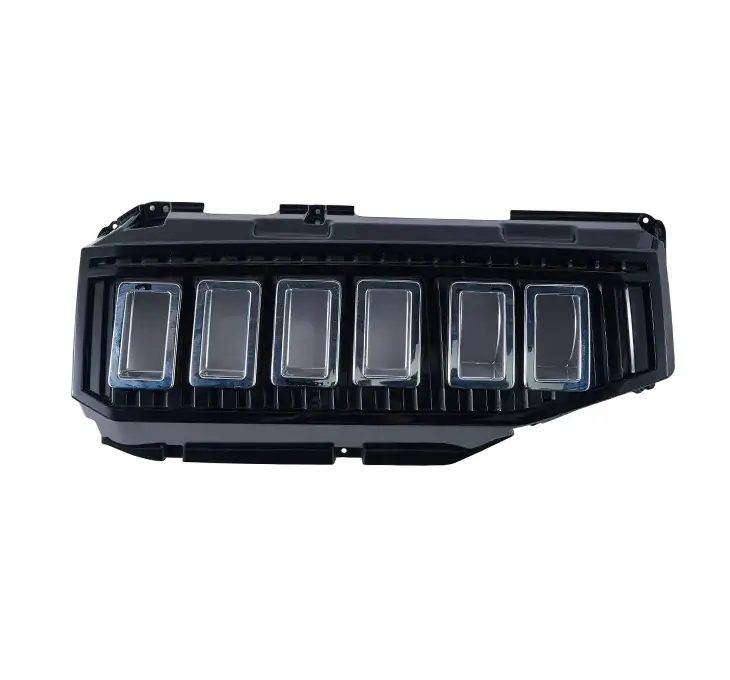

The growing use of engineered plastics has changed how automotive components are designed and manufactured. Lightweight materials allow vehicle manufacturers to reduce overall mass while maintaining functional performance, and injection molding makes it possible to produce complex shapes with integrated mounting features and consistent surface finishes. From center console structures and door panels to battery covers, electrical enclosures, and exterior trim, every application presents specific engineering challenges. Successful Plastic Injection Molding Automotive Parts development depends on understanding how material behavior, component geometry, mold construction, and processing conditions influence the final product.

One important consideration is the relationship between product design and structural performance. Automotive plastic components often need to withstand vibration, repeated assembly forces, temperature changes, and contact with surrounding parts. Designers use ribs, reinforcing walls, bosses, and mounting clips to provide the necessary stiffness and connection points. However, these features must be arranged carefully to avoid excessive material concentration. Thick sections may cool more slowly and create sink marks, while poorly designed transitions can contribute to residual stress or distortion. Consistent wall thickness, suitable radii, and practical draft angles help improve moldability without compromising the intended function.

Material engineering provides another foundation for reliable production. Different thermoplastics offer different combinations of impact resistance, flexibility, dimensional stability, and thermal performance. Polypropylene is commonly used in lightweight interior and exterior applications, while ABS can support components requiring attractive surfaces and useful impact properties. Polyamide may be appropriate for parts exposed to greater mechanical or thermal demands. Reinforced grades can improve stiffness, but fiber orientation and shrinkage behavior need to be considered during mold design. Selecting a resin should involve more than comparing material cost; the expected operating environment, assembly requirements, and manufacturing process must also be evaluated.

Before tooling construction, engineers need to understand how the selected polymer will flow through the component geometry. Gate location, runner configuration, and cavity arrangement influence filling balance and pressure distribution. If a flow path is too long or a section is particularly thin, the material may not fill the cavity consistently. Weld lines can form where separate flow fronts meet, while trapped air may cause burn marks or incomplete filling. Mold flow simulation helps evaluate these potential problems and compare design alternatives. The results can guide adjustments to gates, runners, and vents before machining, reducing uncertainty during the development process.

Cooling design is equally important because the component must solidify evenly before ejection. Automotive parts may combine broad surfaces with ribs, bosses, and thick mounting sections, creating different thermal conditions within one cavity. Uneven cooling can cause differential shrinkage, dimensional instability, and warpage. Cooling channels should be positioned according to the part geometry and expected heat distribution. Their arrangement must also preserve the strength of the mold and allow practical cleaning and inspection. A well-balanced cooling system supports repeatable dimensions and helps establish an efficient production cycle.

The manufacturing accuracy of the mold determines how closely the finished component follows the approved product design. CNC machining is used to produce cavity profiles, core surfaces, and precise interfaces, while EDM can create narrow slots and complex details. Polishing and texturing establish the required surface appearance, especially for visible interior components. The mold base, guide systems, slides, lifters, and ejector components must be assembled with appropriate accuracy to ensure reliable movement. Inspection throughout machining and assembly helps identify deviations before they affect the first molding trial.

Validation should examine more than whether a part can be produced. Trial molding allows engineers to evaluate dimensional accuracy, surface appearance, filling behavior, demolding, and assembly compatibility. Processing conditions such as injection speed, melt temperature, holding pressure, and cooling time are adjusted according to the material and component requirements. Parts may also be checked against mating components to identify interference or alignment problems that are not obvious from individual measurements. Recording trial conditions and inspection findings provides a reference for process optimization and future production.

Once production is established, consistency depends on maintaining both the mold and the molding process. Regular inspection of cavity surfaces, vents, cooling channels, and moving components helps prevent gradual performance changes. Material storage and preparation should follow the requirements of the selected resin, particularly when moisture control is necessary. Production teams can also monitor recurring defects and compare inspection results across batches to identify changes early. These practices reduce unexpected downtime and help maintain stable component quality throughout the manufacturing program.

For automotive buyers, choosing a tooling partner means evaluating engineering communication, material knowledge, machining capability, validation support, and long-term service. A supplier that understands both product requirements and factory conditions can help identify potential problems before they become costly production issues. Taizhou Renxin Mould Co., Ltd. provides automotive mold development support through coordinated design and manufacturing processes. Buyers can visit https://www.rxmolds.com/product/ to discuss drawings, resin selection, tooling requirements, and production objectives when planning Plastic Injection Molding Automotive Parts projects.
